Technical Specifications
Omron G2R-224AC technical specifications.
General
Application(s)
POWER
Coil Power
530mW
Coil Resistance
260R
Coil Type
Non-Latching
Coil Voltage (AC)
24V
Contact Current Rating
5A
Contact Material
Silver
Depth
13mm
Height
25.5mm
Length
29mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
PCB
Ratings
IP54
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Switching Current
5A
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
Omron G2R-224AC Datasheet
Download the complete datasheet for Omron G2R-224AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

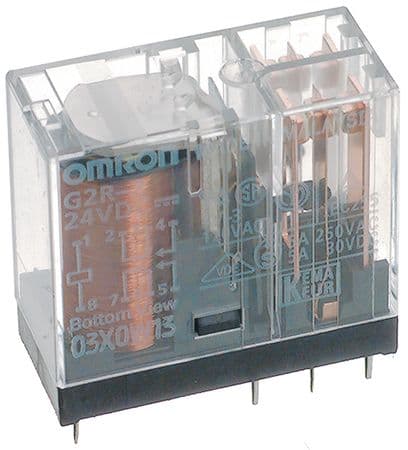

Product Images
