DPDT power relay with a 5V DC coil voltage, 106mA coil current, and 530mW coil power. Features a 4A contact current rating with silver contacts and a 5A maximum current rating. Operates within a -40°C to 70°C temperature range, offering 15ms operate time and 5ms release time. Approved by UL, CSA, VDE, and CE, this through-hole mount relay is suitable for PCB applications.
PackageDIP
Current Rating5A
MountingThrough Hole, PCB
Power530mW
Quick Jump:
Technical Specifications
Omron G2R-24-DC5 technical specifications.
General
Application(s)
POWER
Approvals
UL, CSA, VDE, CE
Package/Case
DIP
Coil Current
106mA
Coil Power
530mW
Coil Resistance
47R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
4A
Contact Material
Silver
Current Rating
5A
Depth
13.5mm
Height
25.5mm
Lead Free
Lead Free
Length
29mm
Life (Hours)
100000Hour
Max Current Rating
4A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole, PCB
Operate Time
15ms
Packaging
Tray
Power Consumption
530mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
5ms
Series
G2R
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
380V
DC Rated Voltage
125V
Weight
17g
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Omron G2R-24-DC5 Datasheet
Download the complete datasheet for Omron G2R-24-DC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

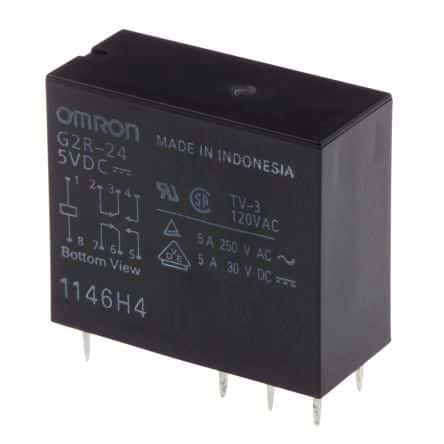

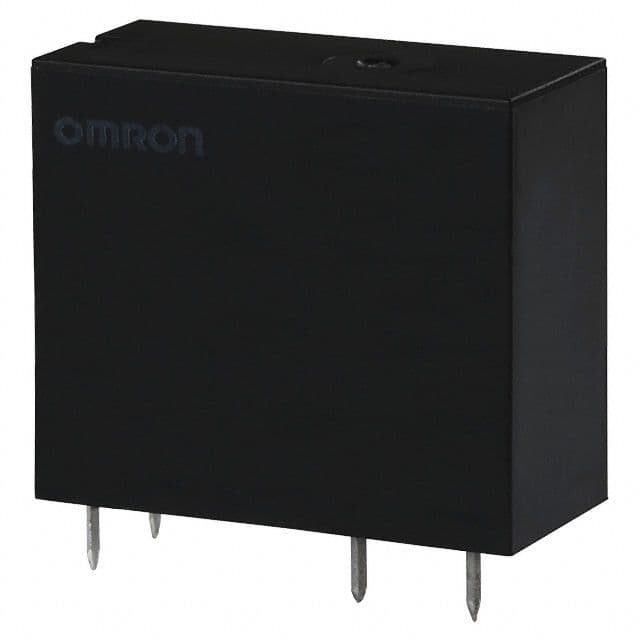

Product Images
