SPDT through-hole power relay featuring a 12VDC coil with 360 Ohm resistance and 33.3mA current draw. This general-purpose relay offers a 12A contact current rating and operates within a -40°C to 85°C temperature range. It supports AC voltage ratings up to 440V and DC voltage ratings up to 300V, with a coil power consumption of 400mW. Dimensions are 29mm (length) x 12.7mm (width) x 15.7mm (height).
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Omron G2RL-1-DC12 technical specifications.
General
| Coil Current | 33.3mA |
| Coil Power | 400mW |
| Coil Resistance | 360R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 250V |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 12A |
| Contact Material | Silver, Cadmium |
| Depth | 12.7mm |
| Height | 15.7mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 300V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Consumption | 400mW |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Series | G2RL |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 440V |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2RL-1-DC12 Datasheet
Download the complete datasheet for Omron G2RL-1-DC12 to view detailed technical specifications.
No datasheet is available for this part.

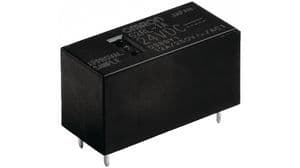

Product Images
