Technical Specifications
Omron G2RL-112DC technical specifications.
General
Application(s)
POWER
Coil Current
33.3mA
Coil Power
400mW
Coil Resistance
360R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
12A
Contact Material
Silver, Tin, Cadmium
Depth
12.7mm
Height
15.7mm
Length
29mm
Life (Hours)
20000000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
Operate Time
15ms
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
440V
DC Rated Voltage
300V
Compliance
RoHS
Compliant
Datasheet
Omron G2RL-112DC Datasheet
Download the complete datasheet for Omron G2RL-112DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

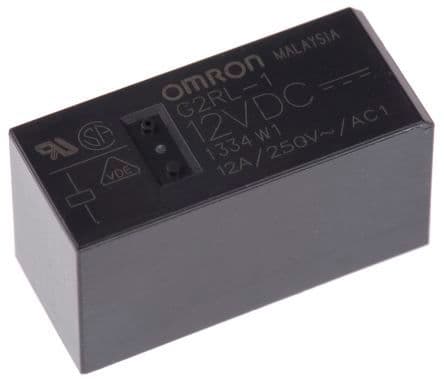

Product Images
