Sealed, general-purpose power relay featuring SPST-NO contact configuration. Rated for 12A contact current and 440VAC/300VDC maximum voltage. Operates with a 24VDC coil voltage, drawing 16.7mA and consuming 400mW of power. Features a 15ms operate time and 5ms release time, with a silver-cadmium contact material. Through-hole mounting with PC pin termination, operating within a -40°C to 85°C temperature range.
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Omron G2RL-1A4-DC24 technical specifications.
General
Coil Current
16.7mA
Coil Power
400mW
Coil Resistance
1.44kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
12A
Contact Material
Silver, Cadmium
Height
15.7mm
Lead Free
Lead Free
Length
29mm
Max Current Rating
12A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
300V
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Rail/Tube
Power Consumption
400mW
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
Series
G2RL
Termination
PC Pin
Throw Configuration
SPST
Weight
12g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Omron G2RL-1A4-DC24 Datasheet
Download the complete datasheet for Omron G2RL-1A4-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

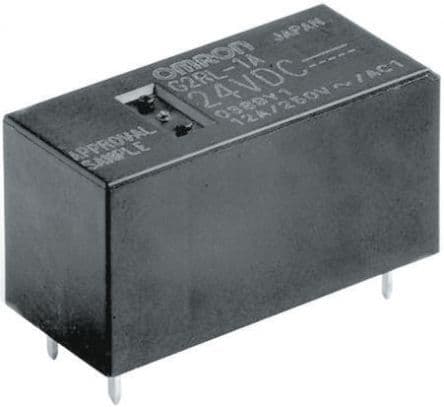

Product Images
