Omron
G2RL-1A424DC
OMRON ELECTRONIC COMPONENTS G2RL-1A4 24DC General Purpose Relay, G2RL Series, Power, Non Latching, SPST-NO, 24 VDC, 12 A
MountingPCB
Quick Jump:
Technical Specifications
Omron G2RL-1A424DC technical specifications.
General
Application(s)
POWER
Coil Resistance
1.44kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
12A
Contact Material
Tin, Silver
Depth
12.7mm
Height
15.7mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
Ratings
IP67
Reach SVHC Compliant
Unknown
Switching Current
12A
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
Omron G2RL-1A424DC Datasheet
Download the complete datasheet for Omron G2RL-1A424DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

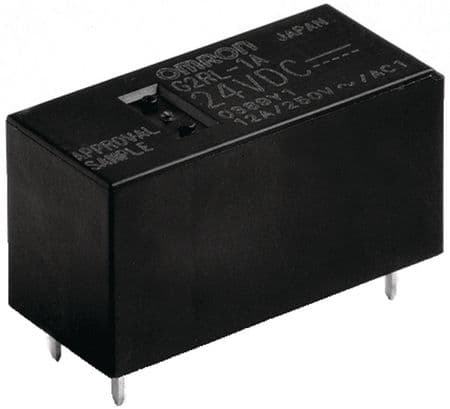

Product Images
