Omron
G2RL1A4E5DC
OMRON ELECTRONIC COMPONENTS G2RL-1A4-E 5DC General Purpose Relay, G2RL Series, Power, Non Latching, SPST-NO, 5 VDC, 12 A
MountingPCB
Quick Jump:
Technical Specifications
Omron G2RL1A4E5DC technical specifications.
General
Application(s)
POWER
Coil Resistance
62.5R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
12A
Contact Material
Tin, Silver
Depth
12.7mm
Height
15.7mm
Length
29mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
Ratings
IP67
Reach SVHC Compliant
Unknown
Switching Current
16A
Termination
Through Hole
Compliance
RoHS
Compliant
Datasheet
Omron G2RL1A4E5DC Datasheet
Download the complete datasheet for Omron G2RL1A4E5DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

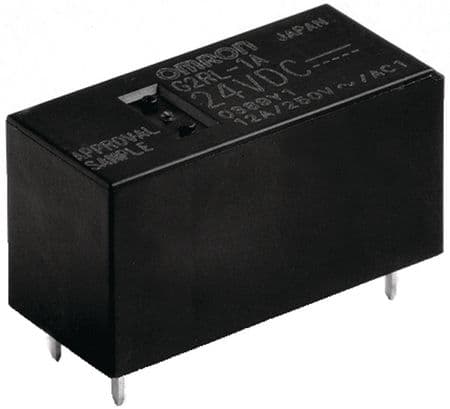

Product Images
