Technical Specifications
Omron G2RV-SL700-DC24(DC21) technical specifications.
General
| Approvals | VDE, CE, cULus |
| Coil Current | 13.3mA |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 6A |
| Contact Material | Tin, Silver |
| Current Rating | 6A |
| Lead Free | Lead Free |
| Length | 92.7mm |
| Mount | DIN Rail |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 300mW |
| RoHS Compliant | Yes |
| Series | G2RV |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2RV-SL700-DC24(DC21) Datasheet
Download the complete datasheet for Omron G2RV-SL700-DC24(DC21) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

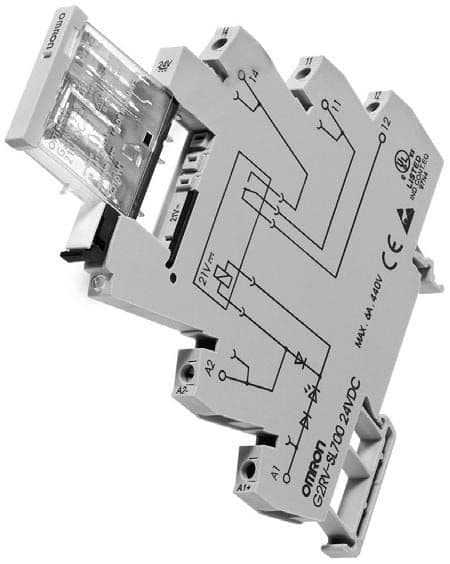

Product Images
