AC & DC Output Solid State Relay (SSR) with a 350V AC/DC voltage rating and 120mA load current. Features include 2.5kV isolation voltage, 0.8pF capacitance, and DC input type with a 50mA input current. This surface mount device utilizes gull wing termination and is available in a DIL package. RoHS compliant and UL approved.
PackageSMD/SMT
Capacitance0.8pF
Current Rating120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Omron G3VM-352F technical specifications.
General
Approvals
UL
Capacitance
0.8pF
Package/Case
SMD/SMT
Current Rating
120mA
Depth
6.4mm
Forward Current
7.5mA
Height
3.65mm
Input Current
50mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
9.66mm
Load Current
120mA
Max Input Current
50mA
Max Input Voltage
1.3V
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
120mA
Max Output Voltage
350V
Mount
Surface Mount
Output Current
120mA
Output Voltage
350V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
G3VM
Termination
Gull Wing
Throw Configuration
DPST, SPST
Voltage Rating (AC)
350V
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Omron G3VM-352F Datasheet
Download the complete datasheet for Omron G3VM-352F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

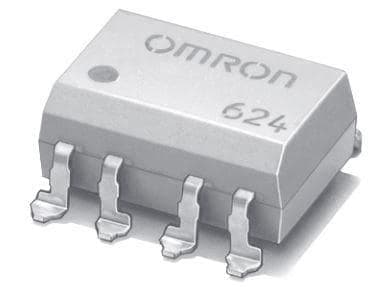

Product Images
