Technical Specifications
Omron G4W-2214P-US-TV5DC24 technical specifications.
General
Coil Current
33.3mA
Coil Power
800mW
Coil Resistance
720R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver, Cadmium
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
20ms
Package Quantity
50
Packaging
Bulk
Relay Type
General Purpose
Release Time
5ms
Series
G4W
Termination
PC Pin
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Omron G4W-2214P-US-TV5DC24 Datasheet
Download the complete datasheet for Omron G4W-2214P-US-TV5DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

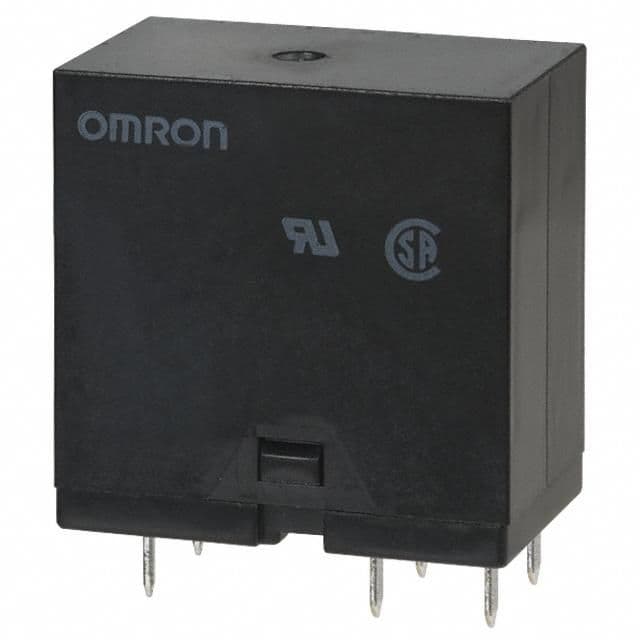

Product Images
