General purpose PCB power relay featuring a 12V DC coil with 33.3mA coil current and 400mW coil power. This SPST relay offers a 10A contact current rating with tin/silver contact material, capable of switching up to 250V AC or 125V DC. Designed for through-hole mounting with PC pin termination, it operates within a temperature range of -40°C to 85°C, boasting a 10ms operate time and 5ms release time.
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G5LE-1A-CFDC12 technical specifications.
General
Coil Current
33.3mA
Coil Power
400mW
Coil Resistance
360R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Tin, Silver
Height
18.5mm
Lead Free
Lead Free
Length
21.6mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
10ms
Package Quantity
500
Packaging
Tray
Relay Type
General Purpose
Release Time
5ms
Series
G5LE
Termination
PC Pin
Throw Configuration
SPST
Width
15.6mm
Compliance
RoHS
Compliant
Datasheet
Omron G5LE-1A-CFDC12 Datasheet
Download the complete datasheet for Omron G5LE-1A-CFDC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

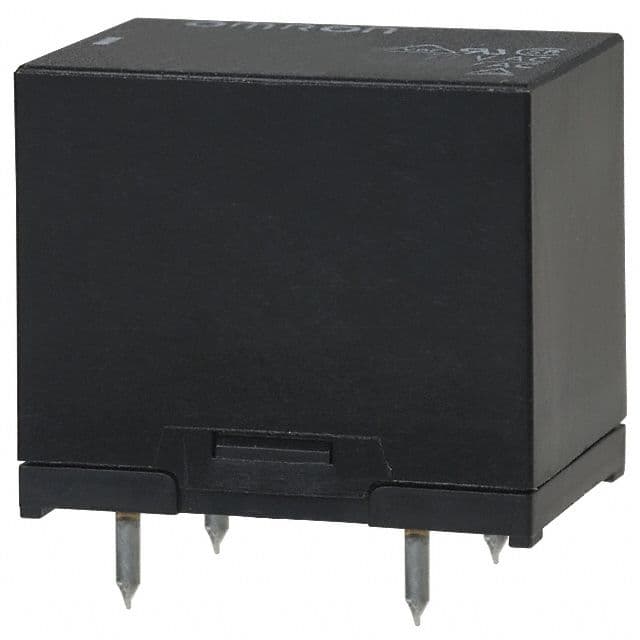

Product Images
