Omron
G5LE-1A424DC
OMRON ELECTRONIC COMPONENTS G5LE-1A4 24DC General Purpose Relay, G5LE Series, Power, Non Latching, SPST-NO, 24 VDC, 10 A
MountingPCB
Quick Jump:
Technical Specifications
Omron G5LE-1A424DC technical specifications.
General
Application(s)
POWER
Coil Resistance
1.44kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Tin, Silver
Depth
16.5mm
Height
19mm
Length
22.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
PCB
Reach SVHC Compliant
Unknown
Termination
PCB
Compliance
RoHS
Compliant
Datasheet
Omron G5LE-1A424DC Datasheet
Download the complete datasheet for Omron G5LE-1A424DC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

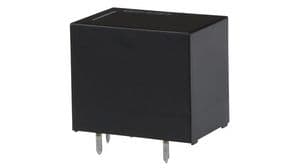

Product Images
