Technical Specifications
Omron G5T1ADC5 technical specifications.
General
| Coil Current | 40mA |
| Coil Power | 200mW |
| Coil Resistance | 125R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 5A |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G5T |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 3g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G5T1ADC5 Datasheet
Download the complete datasheet for Omron G5T1ADC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

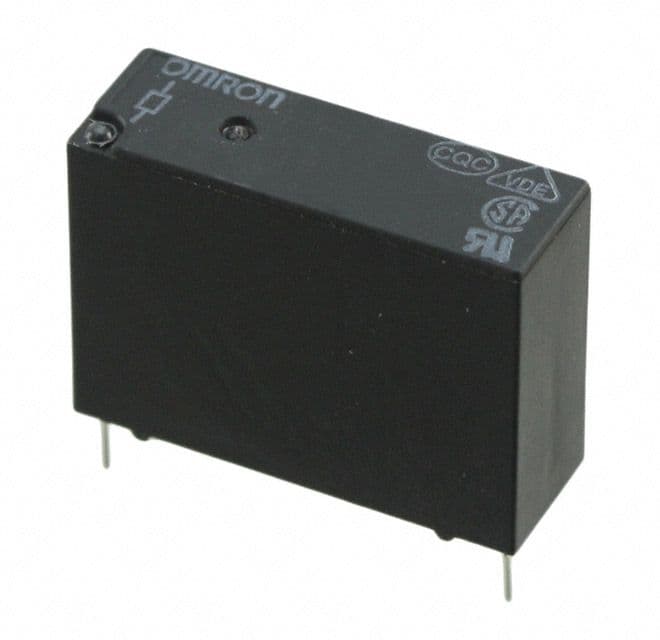

Product Images
