Technical Specifications

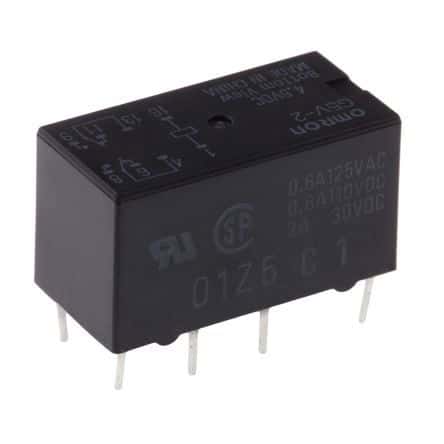

Omron G5V-2DC4.5 technical specifications.
General
Coil Current
111mA
Coil Resistance
40.5R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
2A
Contact Material
Gold, Silver
Max Current Rating
2A
Max Operating Temperature
65°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
7ms
Package Quantity
25
Packaging
Rail/Tube
Power Consumption
500mW
Radiation Hardening
No
Relay Type
General Purpose
Release Time
3ms
Series
G5V-2
Termination
PC Pin
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G5V-2DC4.5 Datasheet
Download the complete datasheet for Omron G5V-2DC4.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
