Technical Specifications
Omron G6A-234P-ST10-US-DC48 technical specifications.
General
Coil Current
4.9mA
Coil Resistance
9.75kR
Coil Type
Non-Latching
Coil Voltage (DC)
48V
Contact Current Rating
1A
Contact Material
Gold, Silver
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
5ms
Package Quantity
25
Packaging
Rail/Tube
Relay Type
General Purpose
Release Time
3ms
Series
G6A
Termination
PC Pin
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6A-234P-ST10-US-DC48 Datasheet
Download the complete datasheet for Omron G6A-234P-ST10-US-DC48 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

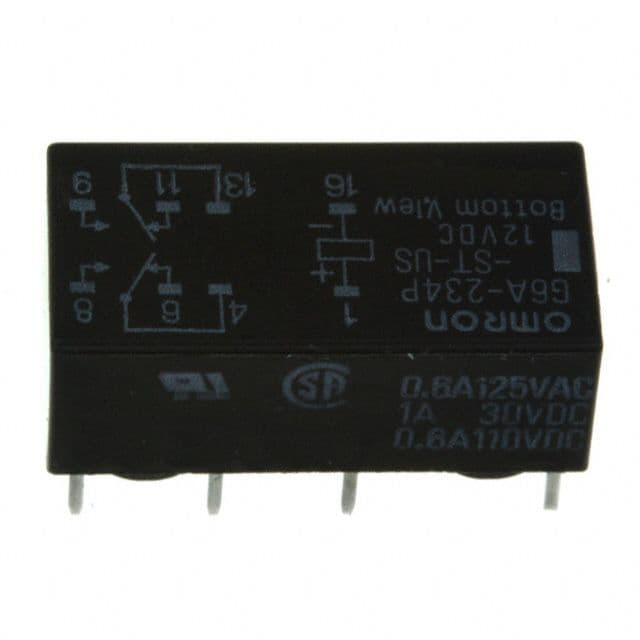

Product Images
