Technical Specifications
Omron G6B-1114P-FD-US-P6B-DC24 technical specifications.
General
| Coil Current | 8.3mA |
| Coil Resistance | 2.88kR |
| Coil Voltage (DC) | 24V |
| Contact Material | Silver |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Termination | PC Pins |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Omron G6B-1114P-FD-US-P6B-DC24 Datasheet
Download the complete datasheet for Omron G6B-1114P-FD-US-P6B-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

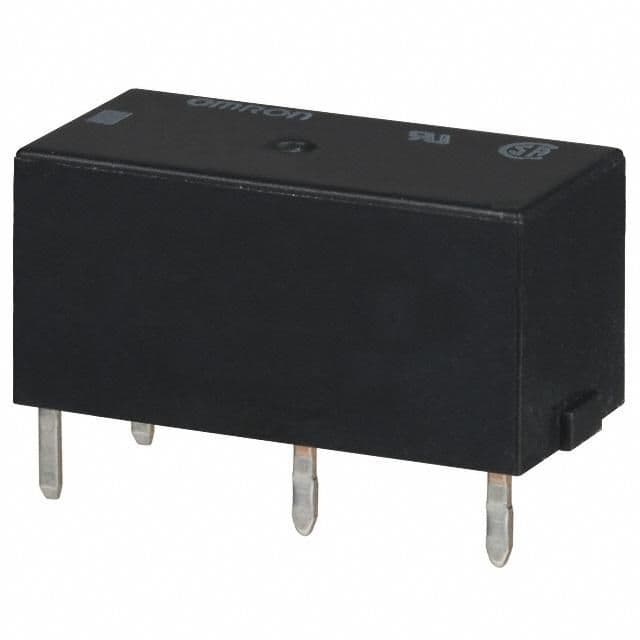

Product Images
