Technical Specifications
Omron G6B-48BND-DC24 technical specifications.
General
Coil Current
10.7mA
Coil Power
200mW
Coil Resistance
2.88kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
2A
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Operate Time
10ms
Package Quantity
10
Packaging
Bulk
Relay Type
General Purpose
Release Time
15ms
Series
G6B-4
Termination
Screw
Throw Configuration
4PST, SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6B-48BND-DC24 Datasheet
Download the complete datasheet for Omron G6B-48BND-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

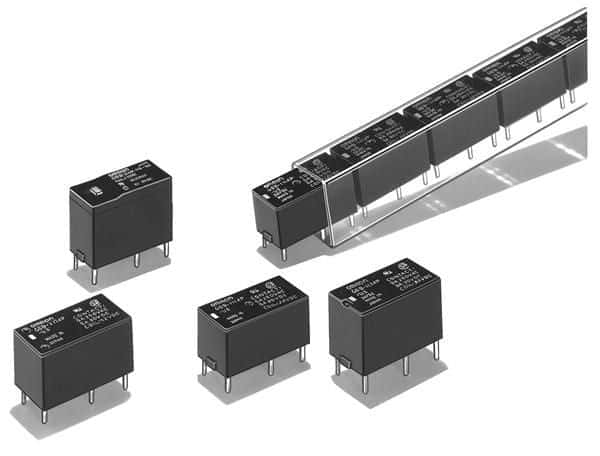

Product Images
