Technical Specifications
Omron G6K-2F-RF-S-TR03DC4.5 technical specifications.
General
Package/Case
SMD/SMT
Coil Current
23.2mA
Coil Power
100mW
Coil Resistance
194R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
1A
Contact Material
Gold, Silver
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operate Time
3ms
Package Quantity
300
Packaging
Tape and Reel
Relay Type
RF
Release Time
3ms
RoHS Compliant
Yes
Series
G6K-RF
Termination
Gull Wing
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G6K-2F-RF-S-TR03DC4.5 Datasheet
Download the complete datasheet for Omron G6K-2F-RF-S-TR03DC4.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

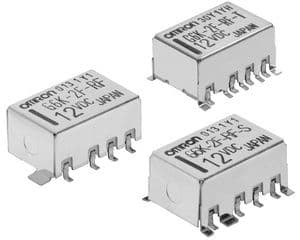

Product Images
