DPDT signal relay with a 1A contact current rating, suitable for PCB mounting via through-hole termination. Features a 4.5VDC non-latching coil with 194 Ohm resistance and 23.3mA coil current, consuming 100mW. Offers AC voltage rating of 125V and DC rated voltage of 60V, with contact material of gold and silver. Operates within a temperature range of -40°C to 70°C and has an operate time of 3ms. Approvals include UL and CSA.
PackageDIP
Current Rating1A
MountingPCB, Through Hole
Power100mW
Quick Jump:
Technical Specifications
Omron G6K-2P-Y-DC4.5 technical specifications.
General
Approvals
UL, CSA
Package/Case
DIP
Coil Current
23.3mA
Coil Resistance
194R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
1A
Contact Material
Gold, Silver
Current Rating
1A
Depth
6.5mm
Lead Free
Lead Free
Length
10mm
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
60V
Mount
PCB, Through Hole
Operate Time
3ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
100mW
Radiation Hardening
No
Series
G6K
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
125V
DC Rated Voltage
60V
Weight
0.7g
Compliance
RoHS
Compliant
Datasheet
Omron G6K-2P-Y-DC4.5 Datasheet
Download the complete datasheet for Omron G6K-2P-Y-DC4.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

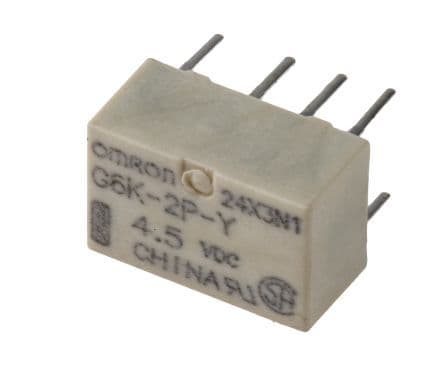

Product Images
