DPDT RF signal relay featuring a 4.5V DC coil with 100mW power consumption and 194 Ohm resistance. Offers a 1A contact current rating with gold and silver contact material, suitable for frequencies up to 125V AC and 60V DC. Surface mountable with gull wing termination, this relay provides 3ms operate and release times and a low 0.2dB insertion loss.
MountingSurface Mount
Power100mW
Quick Jump:
Technical Specifications
Omron G6KU-2F-RF-DC4.5 technical specifications.
General
Coil Current
23.2mA
Coil Power
100mW
Coil Resistance
194R
Coil Type
Latching, Single Coil
Coil Voltage (DC)
4.5V
Contact Current Rating
1A
Contact Material
Gold, Silver
Depth
7.8mm
Insertion Loss
0.2dB
Length
12.8mm
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
60V
Mount
Surface Mount
Operate Time
3ms
Package Quantity
300
Packaging
Rail/Tube
Power Consumption
100mW
Radiation Hardening
No
Relay Type
RF
Release Time
3ms
Series
G6K-RF
Termination
Gull Wing
Throw Configuration
DPDT
Voltage Rating (AC)
125V
Weight
0.95g
Compliance
RoHS
Compliant
Datasheet
Omron G6KU-2F-RF-DC4.5 Datasheet
Download the complete datasheet for Omron G6KU-2F-RF-DC4.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

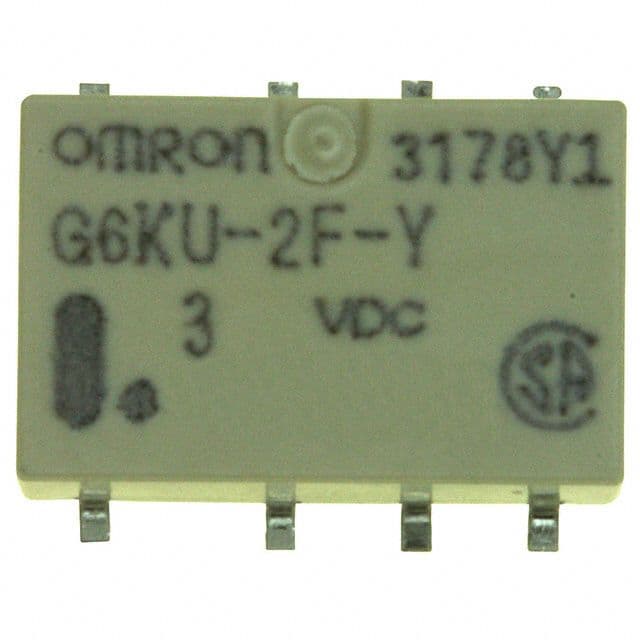

Product Images
