SPST-NO signal relay with a 1A contact current rating and 4.5VDC coil voltage. Features a 112.5 Ohm coil resistance, 40mA coil current, and 180mW coil power. Designed for surface mount applications with gull wing termination, offering a 125VAC or 60VDC maximum voltage rating. Operates within a -40°C to 70°C temperature range with a 5ms operate and release time.
MountingSurface Mount
Power180mW
Quick Jump:
Technical Specifications
Omron G6L-1F-DC4.5 technical specifications.
General
Coil Current
40mA
Coil Power
180mW
Coil Resistance
112.5R
Coil Type
Non-Latching
Coil Voltage (DC)
4.5V
Contact Current Rating
1A
Depth
7mm
Height
4.5mm
Lead Free
Lead Free
Length
10.6mm
Life (Hours)
100000Hour
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
60V
Mount
Surface Mount
Operate Time
5ms
Package Quantity
50
Packaging
Rail/Tube
Power Consumption
180mW
Radiation Hardening
No
Relay Type
Telecom
Release Time
5ms
RoHS Compliant
Yes
Series
G6L
Termination
Gull Wing
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6L-1F-DC4.5 Datasheet
Download the complete datasheet for Omron G6L-1F-DC4.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

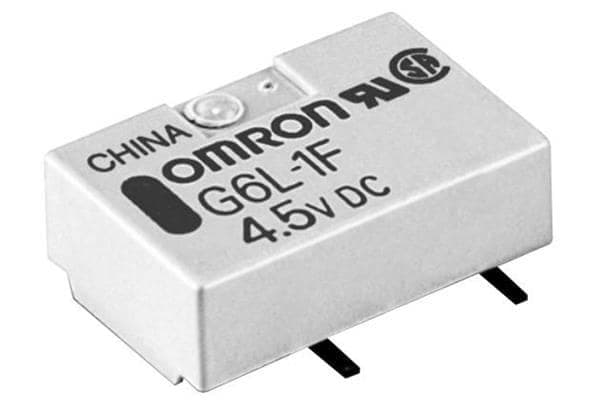

Product Images
