Technical Specifications
Omron G6RL-1A-ASIDC6 technical specifications.
General
Coil Current
36.7mA
Coil Power
220mW
Coil Resistance
163R
Coil Type
Non-Latching
Coil Voltage (DC)
6V
Contact Current Rating
10A
Contact Material
Tin, Silver
Max Current Rating
10A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
400V
Max Voltage Rating (DC)
300V
Mount
Through Hole
Operate Time
10ms
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G6RL
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G6RL-1A-ASIDC6 Datasheet
Download the complete datasheet for Omron G6RL-1A-ASIDC6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

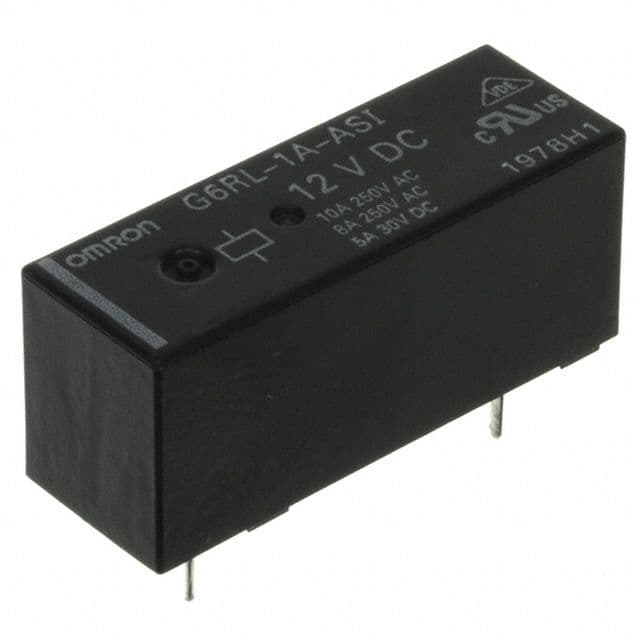

Product Images
