Technical Specifications
Omron G8QN-1C4DC12 technical specifications.
General
Coil Current
57.14mA
Coil Power
685mW
Coil Resistance
210R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
30A
Contact Material
Tin, Silver
Depth
12.5mm
Lead Free
Contains Lead
Length
16mm
Max Current Rating
30A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
16V
Mount
Through Hole
Operate Time
10ms
Packaging
Bulk
Power Consumption
685mW
Release Time
5ms
Series
G8QN
Termination
PC Pin
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Omron G8QN-1C4DC12 Datasheet
Download the complete datasheet for Omron G8QN-1C4DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

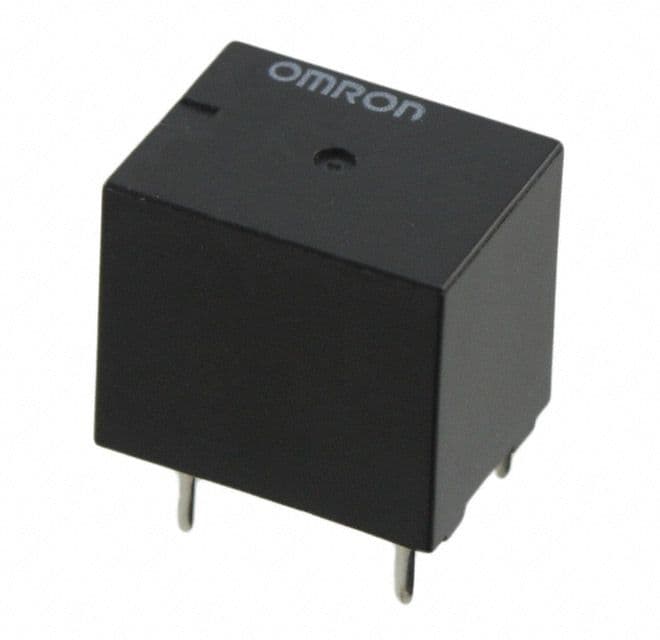

Product Images
