Omron
H3YN-2AC100-120
OMRON INDUSTRIAL AUTOMATION H3YN-2 AC100-120. SOLID STATE TIMER, DPDT, 10MIN, 120VAC
Package120
Current Rating5A
MountingSocketable, DIN Rail, Flush, Panel, Plug-In
Quick Jump:
Technical Specifications
Omron H3YN-2AC100-120 technical specifications.
General
Approvals
UL, CSA
Package/Case
120
Coil Voltage (AC)
120V
Contact Current Rating
5A
Current Rating
5A
Depth
21.5mm
Lead Free
Contains Lead
Length
28mm
Max Current Rating
5A
Max Operating Temperature
50°C
Min Operating Temperature
-10°C
Max Supply Voltage (AC)
120V
Max Voltage Rating (AC)
250V
Mount
Socketable, DIN Rail, Flush, Panel, Plug-In
Number of Contacts
2
Operating Supply Voltage
120V
Package Quantity
1
Reach SVHC Compliant
Unknown
Series
H3YN
Termination
Plug
Throw Configuration
DPDT
Voltage Rating (AC)
250V
Width
21.5mm
Compliance
RoHS
Compliant
Datasheet
Omron H3YN-2AC100-120 Datasheet
Download the complete datasheet for Omron H3YN-2AC100-120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

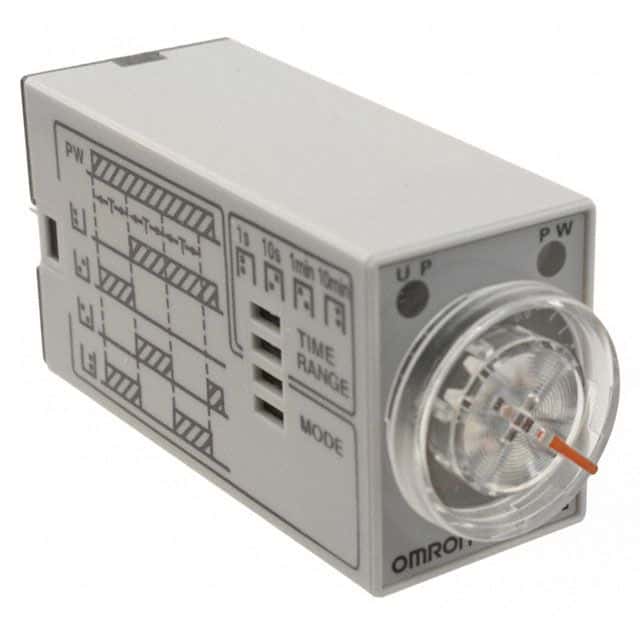

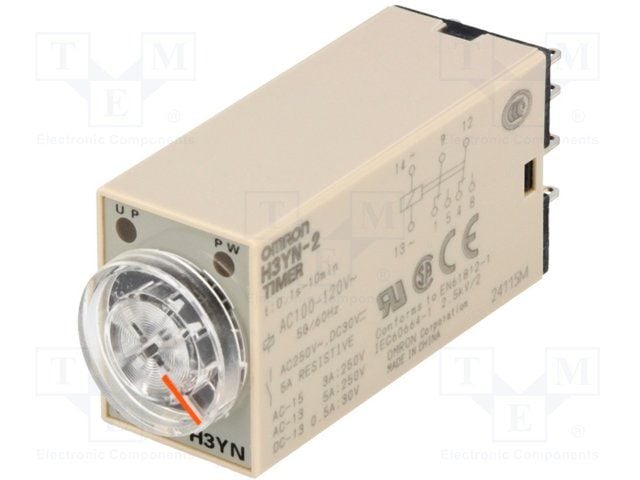

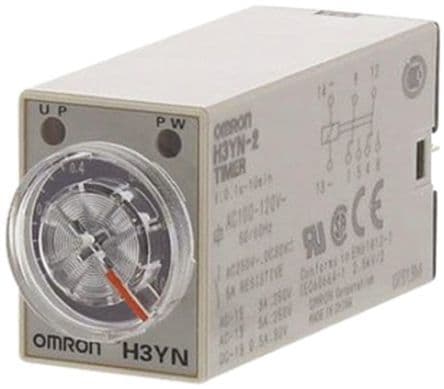

Product Images
