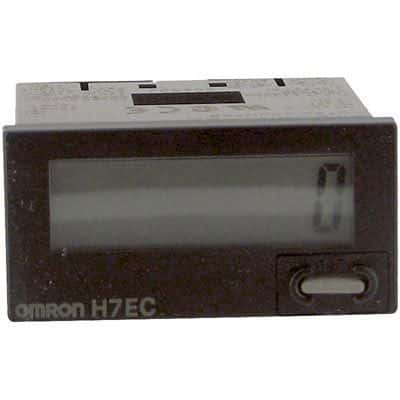

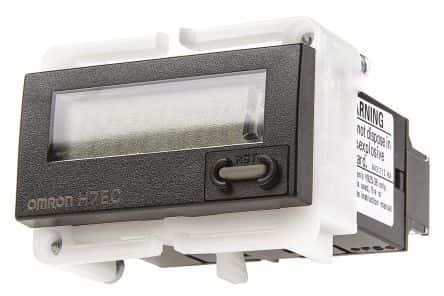

Programmable time delay relay featuring an 8-character LCD display and 24VDC operating supply voltage. This panel-mount relay offers a digital output and counts upwards, with front panel and external reset capabilities. Constructed with a black housing and screw termination, it measures 48.5mm in length, 44.8mm in width, and 37mm in height, with a depth of 48.5mm. Approvals include CSA, UL, and CE, with IP66, water-resistant, and dust-tight ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron H7EC-NV-BH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CSA, UL, CE |
| Count Direction | Up |
| Depth | 48.5mm |
| Display Type | LCD |
| Height | 37mm |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 48.5mm |
| Logic Function | Counter |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Panel, Flush |
| Number Of Characters Per Row | 8 |
| Operating Supply Voltage | 24V |
| Output Type | Digital |
| Package Quantity | 1 |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Reset | Front Panel , External |
| Series | H7EC |
| Termination | Screw |
| Weight | 0.198lb |
| Width | 44.8mm |
| RoHS | Compliant |
