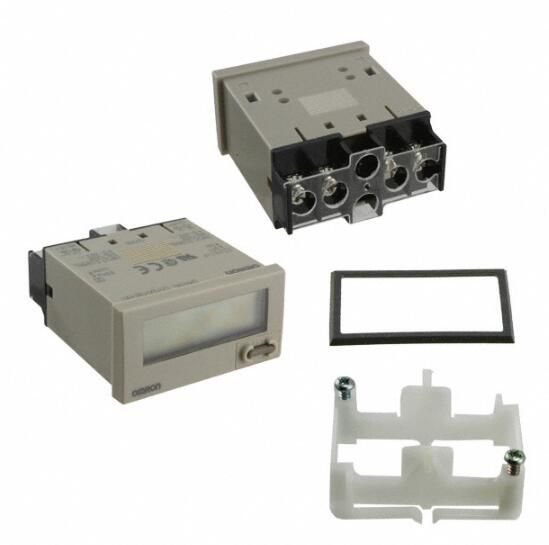

The Omron H7ET-NV-B is a panel mount time delay relay with a maximum operating temperature of 55°C and a minimum operating temperature of -10°C. It has a power consumption of 300mW and is rated for a maximum supply voltage of 24V. The relay is water resistant and dust tight, meeting IP66 standards. It is also compliant with CE and CSA approvals and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron H7ET-NV-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, CE |
| Depth | 35mm |
| Display Type | LCD |
| Height | 37mm |
| Lead Free | Contains Lead |
| Length | 48.5mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage (DC) | 24V |
| Mount | Panel |
| Number Of Characters Per Row | 7 |
| Operating Supply Voltage | 30V |
| Package Quantity | 1 |
| Power Consumption | 300mW |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | Unknown |
| Reset | Front Panel , External |
| RoHS Compliant | Yes |
| Series | H7ET |
| Termination | Screw |
| Weight | 65g |
| Width | 48mm |
| RoHS | Not Compliant |
