Technical Specifications
Omron LY2-0-AP-DC12 technical specifications.
General
Coil Current
75mA
Coil Resistance
160R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Silver
Height
35.56mm
Length
21.59mm
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operate Time
25ms
Package Quantity
1
Packaging
Bulk
Power Consumption
900mW
Relay Type
General Purpose
Release Time
25ms
Series
LY
Termination
PC Pin
Throw Configuration
DPDT
Width
27.94mm
Compliance
RoHS
Compliant
Datasheet
Omron LY2-0-AP-DC12 Datasheet
Download the complete datasheet for Omron LY2-0-AP-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

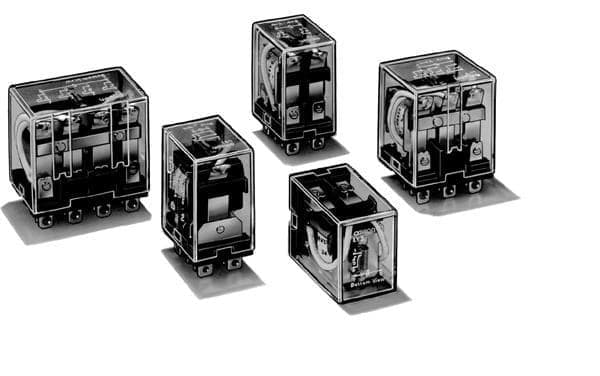

Product Images
