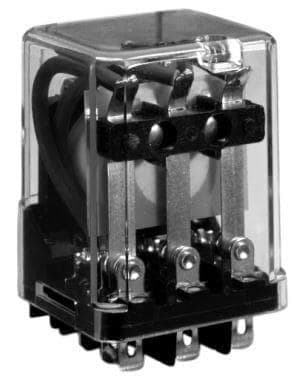

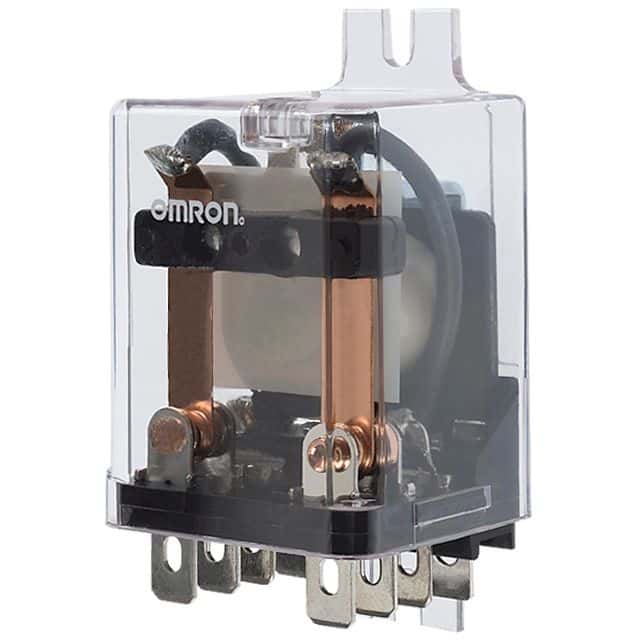

DPDT power relay with a 20A contact current rating and 277VAC/28VDC voltage rating. Features a 24VDC coil voltage, 1.2W coil power, and 470 Ohm coil resistance. Silver contact material ensures durability, with a life expectancy of 100,000 hours. Chassis mountable with quick connect termination, suitable for general purpose applications and UL/CSA approved.
Package120
Current Rating20A
MountingChassis Mount, Panel, Flanges
Power1.2W
Quick Jump:
Technical Specifications
Omron MJN2CE-DC24 technical specifications.
General
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Package/Case
120
Coil Current
51.06mA
Coil Power
1.2W
Coil Resistance
470R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
20A
Contact Material
Silver
Current Rating
20A
Depth
35.56mm
Height
73.66mm
Lead Free
Lead Free
Length
38.73mm
Life (Hours)
100000Hour
Max Current Rating
20A
Max Operating Temperature
70°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
28V
Mount
Chassis Mount, Panel, Flanges
Mounting Style
SOCKET
Operate Time
20ms
Package Quantity
1
Packaging
Bulk
Power Consumption
1.2W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
No
Series
MJN
Termination
Quick Connect
Throw Configuration
DPDT
Voltage Rating (AC)
277V
Width
48.38mm
Compliance
RoHS
Not CompliantNo
Datasheet
Omron MJN2CE-DC24 Datasheet
Download the complete datasheet for Omron MJN2CE-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
