DPDT power relay with a 10A contact current rating and 600V AC / 28V DC voltage rating. Features a 24V DC coil voltage, 1.2W coil power, and 470 Ohm coil resistance. Designed for general purpose applications with a 100,000-hour electrical life and Silver contact material. Offers quick connect termination and chassis/panel/flange/plug-in mounting via socket. Operating temperature range from -45°C to 70°C.
Package120
Current Rating10A
MountingChassis Mount, Panel, Flanges, Plug-In
Power1.2W
Quick Jump:
Technical Specifications
Omron MJN2CF-DC24 technical specifications.
General
Application(s)
GENERAL PURPOSE
Approvals
UL, CSA
Package/Case
120
Coil Current
51.06mA
Coil Power
1.2W
Coil Resistance
470R
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
35.56mm
Height
73.66mm
Lead Free
Lead Free
Length
38.73mm
Life (Hours)
100000Hour
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-45°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
28V
Mount
Chassis Mount, Panel, Flanges, Plug-In
Mounting Style
SOCKET
Operate Time
20ms
Package Quantity
1
Packaging
Bulk
Power Consumption
1.2W
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
No
Series
MJN
Termination
Quick Connect
Throw Configuration
DPDT
Voltage Rating (AC)
600V
Width
48.38mm
Compliance
RoHS
Not Compliant
Datasheet
Omron MJN2CF-DC24 Datasheet
Download the complete datasheet for Omron MJN2CF-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

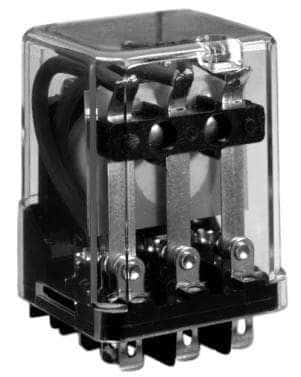

Product Images
