DPDT General Purpose Power Relay with a 5A contact current rating and 10A maximum current rating. Features a 240VAC coil voltage, 4.2mA coil current, and 18.79kΩ coil resistance. Operates within a temperature range of -55°C to 70°C, with AC voltage ratings up to 250V and DC voltage ratings up to 125V. This socketable relay offers 20ms operate and release times and utilizes silver contact material.
MountingSocketable, Socket
Quick Jump:
Technical Specifications
Omron MY2IN-CRAC220/240(S) technical specifications.
General
Coil Current
4.2mA
Coil Resistance
18.79kR
Coil Type
Non-Latching
Coil Voltage (AC)
240V
Contact Current Rating
5A
Contact Material
Silver
Height
36.06mm
Length
27.94mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mount
Socketable, Socket
Mounting Style
SOCKET
Operate Time
20ms
Package Quantity
1
Packaging
Bulk
Relay Type
General Purpose
Release Time
20ms
Series
MY
Termination
Plug
Throw Configuration
DPDT
Width
21.59mm
Compliance
RoHS
Compliant
Datasheet
Omron MY2IN-CRAC220/240(S) Datasheet
Download the complete datasheet for Omron MY2IN-CRAC220/240(S) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

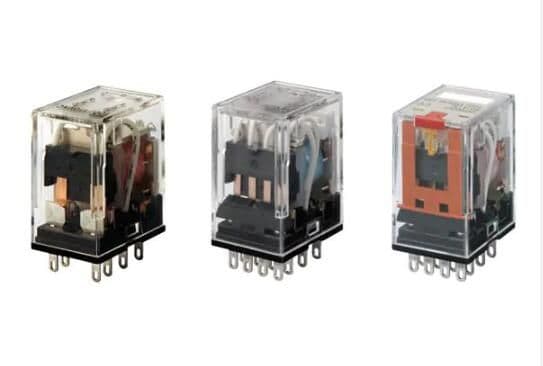

Product Images
