General purpose relay socket featuring 14 through-hole PC pin terminations for PCB mounting. This 4PDT socket supports a 5A current rating and a 250VAC voltage rating. Operating temperature range spans from -55°C to 70°C. The socket is RoHS compliant and lead-free.
Voltage250V
Current Rating5A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Omron PY14-02 technical specifications.
General
Current Rating
5A
Depth
12.2mm
Lead Free
Lead Free
Length
29.5mm
Max Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
125.25kV
Mount
Through Hole, PCB
Number of Contacts
14
Number of Poles
4
Number of Positions
14
Orientation
Straight
Package Quantity
1
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MY
Termination
PC Pin
Throw Configuration
4PDT
Voltage
250V
Voltage Rating (AC)
1.5kV
Compliance
RoHS
Compliant
Datasheet
Omron PY14-02 Datasheet
Download the complete datasheet for Omron PY14-02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

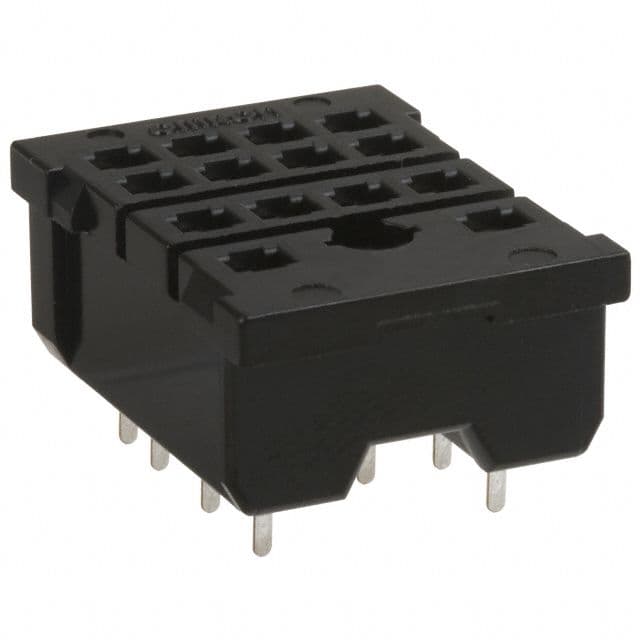

Product Images
