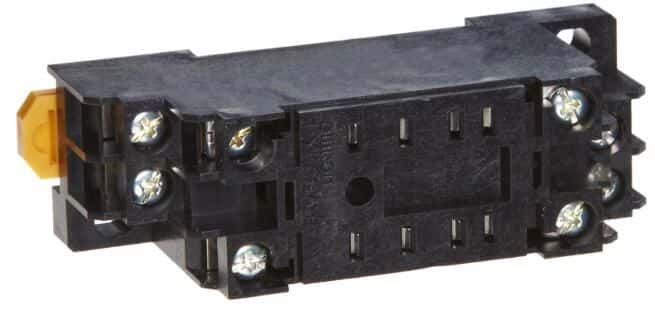

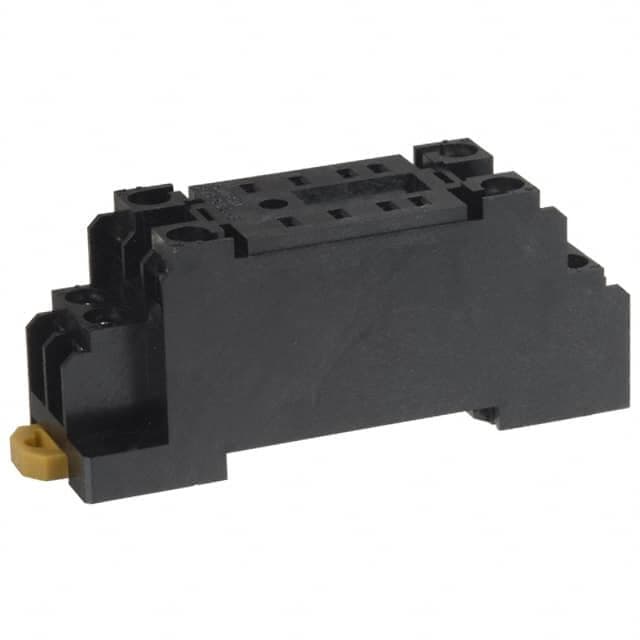

8-position, 2-pole relay socket with DPDT throw configuration, rated for 250V AC and 10A. Features screw terminals for termination and supports DIN rail, panel, or screw mounting. Operates across a wide temperature range from -55°C to 70°C and is lead-free. Approvals include UL, CSA, and VDE.
Voltage250V
Current Rating10A
MountingDIN Rail, Panel, Screw
Quick Jump:
Technical Specifications
Omron PYF08A-E technical specifications.
General
Approvals
UL, CSA, VDE
Current Rating
10A
Depth
31mm
Height
30mm
Lead Free
Lead Free
Length
76mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
125.25kV
Mount
DIN Rail, Panel, Screw
Number of Contacts
8
Number of Poles
2
Number of Positions
8
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Series
MY
Termination
Screw
Throw Configuration
DPDT
Voltage
250V
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Omron PYF08A-E Datasheet
Download the complete datasheet for Omron PYF08A-E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
