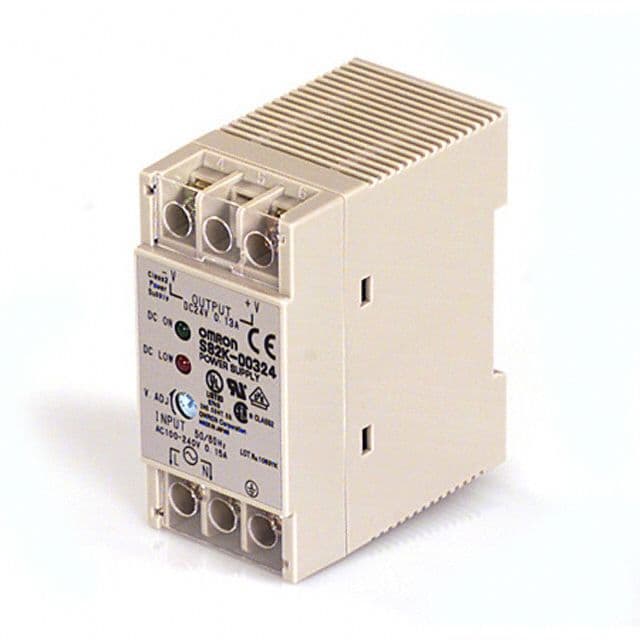

S82K-00324

3W AC/DC Power Supply, 24V, 0.13A, 3kV Isolation, DIN Rail

3W AC/DC power supply featuring a single 24V output at 130mA. Operates with an input voltage range of 85-264V AC and offers 3kV isolation. This general-purpose power supply boasts 60% efficiency and a 3W maximum output power. Designed for DIN rail mounting, it operates within a temperature range of -10°C to 60°C. Dimensions are 65mm (length) x 37.5mm (width) x 75mm (height), with a weight of 150g.

Frequency833MHz

MountingDIN Rail

Power3W

Quick Jump:

Technical Specifications

Omron S82K-00324 technical specifications.

General

Efficiency	60%
Frequency	833MHz
Height	75mm
Isolation Voltage	3kV
Length	65mm
Max Operating Temperature	60°C
Min Operating Temperature	-10°C
Max Output Current	130mA
Max Output Power	3W
Max Power Dissipation	3W
Max Supply Voltage	264V
Min Supply Voltage	85V
Mount	DIN Rail
Nominal Output Voltage	24V
Number of Outputs	1
Output Current	130mA
Output Power	3W
Output Voltage	24V
Package Quantity	1
Reach SVHC Compliant	No
Series	S82K (3W)
Voltage - Output 1	24V
Weight	150g
Width	37.5mm
