7.5W DC/DC converter module with a single 12V, 600mA output. Features a 12-24V DC input range and 74% efficiency. Approvals include UL, CSA, VDE, and CE. Module package designed for DIN rail mounting.
PackageModule
MountingDIN Rail
Power7.5W
Quick Jump:
Technical Specifications
Omron S82S-7712 technical specifications.
General
Approvals
UL, CSA, VDE, CE
Package/Case
Module
Current - Output 1
600mA
Depth
37.5mm
Efficiency
74%
Height
2.95inch
Length
65mm
Max Input Voltage (DC)
24V
Min Input Voltage (DC)
12V
Max Input Voltage
24V
Min Input Voltage
12V
Max Output Power
7.5W
Max Power Dissipation
7W
Mount
DIN Rail
Number of Outputs
1
Output
12V
Output Current
600mA
Output Power
7.5W
Output Voltage
12V
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
S82S
Voltage - Output 1
12V
Width
75mm
Compliance
RoHS
Not Compliant
Datasheet
Omron S82S-7712 Datasheet
Download the complete datasheet for Omron S82S-7712 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

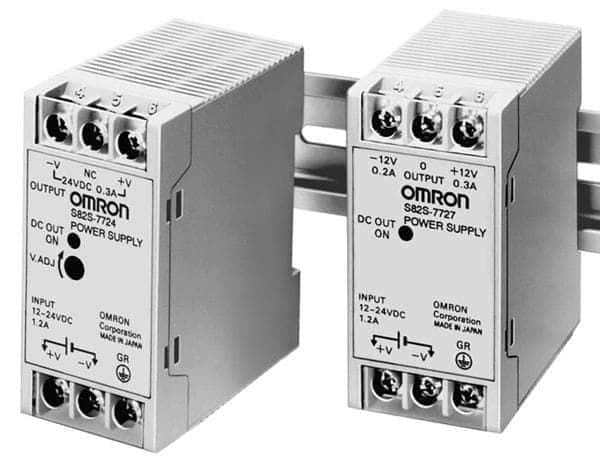

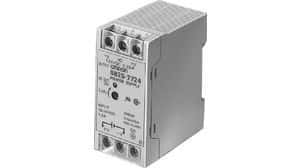

Product Images
