Enclosed AC/DC power supply delivering 24VDC at 10A, with a maximum output power of 240W. Features include 92% efficiency, 3kV isolation voltage, and a wide input voltage range from 85VAC to 240VAC. Operates across an extended temperature range of -40°C to 75°C. Designed for DIN rail mounting, this 240W switched-mode power supply offers a robust solution for demanding applications.
Package120
MountingDIN Rail
Power240W
Quick Jump:
Technical Specifications
Omron S8VK-G24024 technical specifications.
General
Package/Case
120
Current - Output 1
10A
Depth
150mm
Efficiency
92%
Height
125mm
Isolation Voltage
3kV
Length
150mm
Min Input Voltage (AC)
85V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
75°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Power
240W
Max Output Voltage
24V
Min Output Voltage
24V
Max Power Dissipation
240W
Mount
DIN Rail
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
10A
Output Power
240W
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
S8VK-G (240W)
Voltage - Output 1
24V
Weight
900g
Width
60mm
Compliance
RoHS
Compliant
Datasheet
Omron S8VK-G24024 Datasheet
Download the complete datasheet for Omron S8VK-G24024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

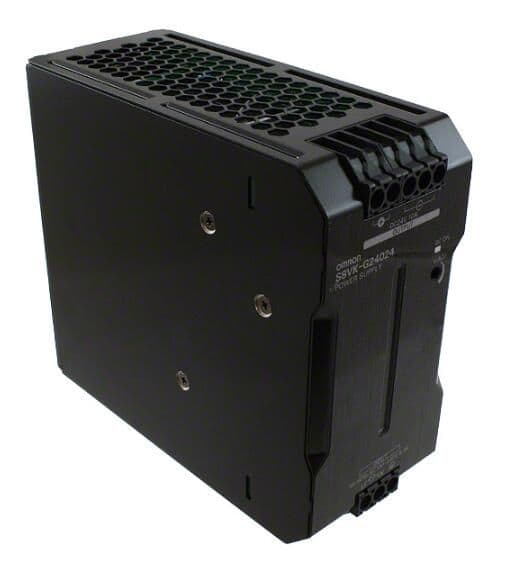

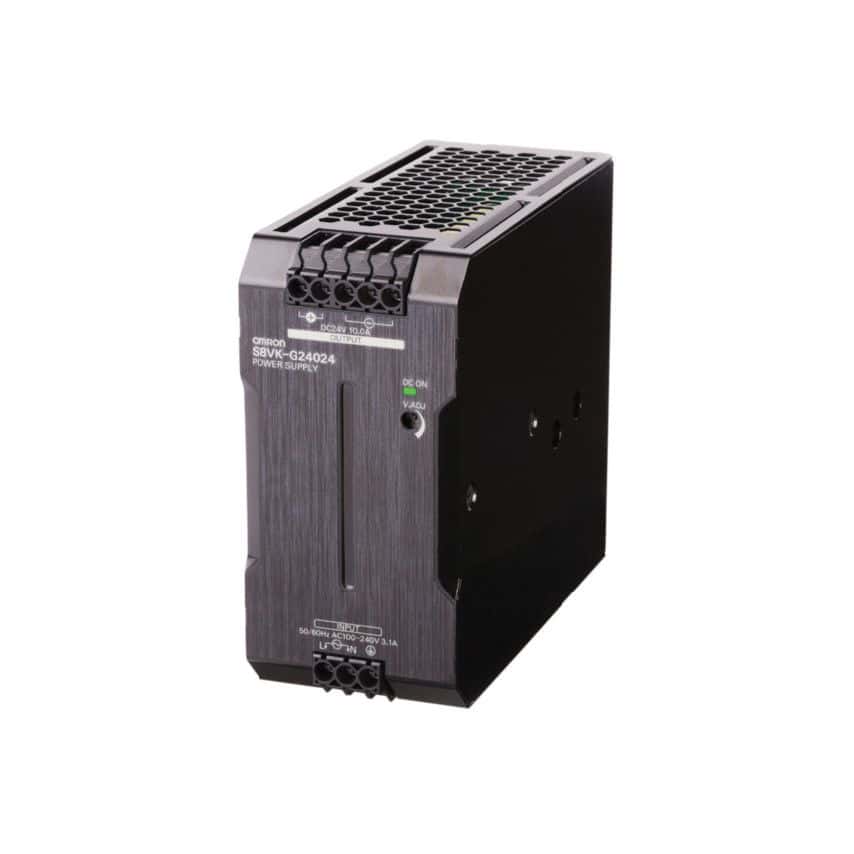

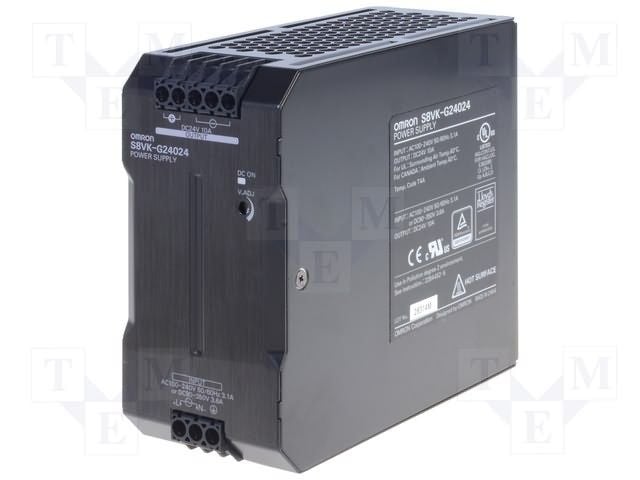

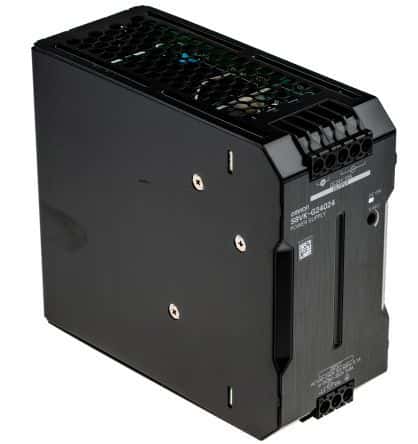

Product Images
