60W AC/DC power supply, single output, delivering 24V at 2.5A. Features 85-264V AC input range, 78% efficiency, and 3kV isolation voltage. Operates from -10°C to 60°C with DIN rail mounting. Dimensions: 108.3mm L x 40mm W x 95mm H. RoHS compliant.
Current Rating2.5A
MountingDIN Rail
Power60W
Quick Jump:
Technical Specifications
Omron S8VS-06024 technical specifications.
General
Current - Output 1
2.5A
Current Rating
2.5A
Depth
40mm
Efficiency
78%
Height
95mm
Input Current
1.7A
Isolation Voltage
3kV
Length
108.3mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Current
2.5A
Max Output Power
60W
Max Output Voltage
24V
Min Output Voltage
24V
Max Power Dissipation
60W
Mount
DIN Rail
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
2.5A
Output Power
60W
Output Voltage
24V
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
S8VS (60W)
Voltage - Output 1
24V
Voltage Rating (AC)
240V
Weight
11.640407oz
Width
40mm
Compliance
RoHS
Compliant
Datasheet
Omron S8VS-06024 Datasheet
Download the complete datasheet for Omron S8VS-06024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

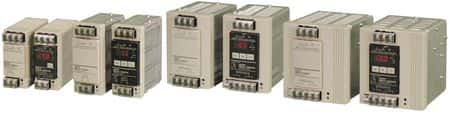

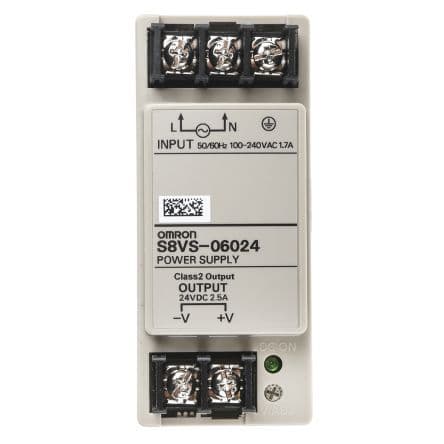

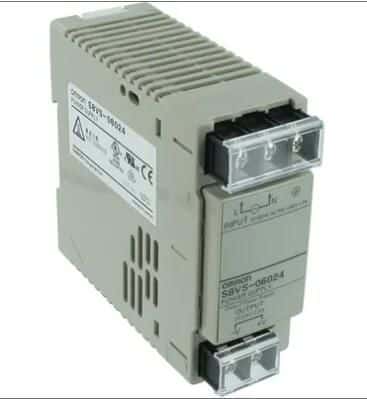

Product Images
