90W AC/DC power supply, single output, delivering 24V at 3.75A. Features 80% efficiency, 3kV isolation voltage, and a wide input voltage range of 85-264V AC. Operates between -10°C and 60°C, with dimensions of 121.3mm (L) x 50mm (W) x 115mm (H). DIN rail mountable and RoHS compliant.
Current Rating3.75A
MountingDIN Rail
Power90W
Quick Jump:
Technical Specifications
Omron S8VS-09024 technical specifications.
General
Current - Output 1
3.75A
Current Rating
3.75A
Depth
121.3mm
Efficiency
80%
Height
115mm
Isolation Voltage
3kV
Length
121.3mm
Max Input Voltage (AC)
264V
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Current
3.75A
Max Output Power
90W
Max Output Voltage
24V
Min Output Voltage
24V
Max Power Dissipation
90W
Mount
DIN Rail
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
3.75A
Output Power
90W
Output Voltage
24V
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
S8VS (90W)
Voltage - Output 1
24V
Voltage Rating (AC)
240V
Weight
1.08lb
Width
50mm
Compliance
RoHS
Compliant
Datasheet
Omron S8VS-09024 Datasheet
Download the complete datasheet for Omron S8VS-09024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

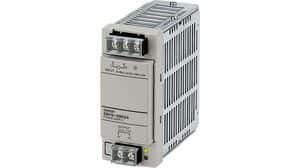

Product Images
