Current Rating100mA
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-01GL13-T technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Electrical Life
200000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mechanical Life
30000000Cycles
Mount
Panel, Chassis Mount, Screw
Operating Force
0.49N
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
Series
SS
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SS-01GL13-T Datasheet
Download the complete datasheet for Omron SS-01GL13-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

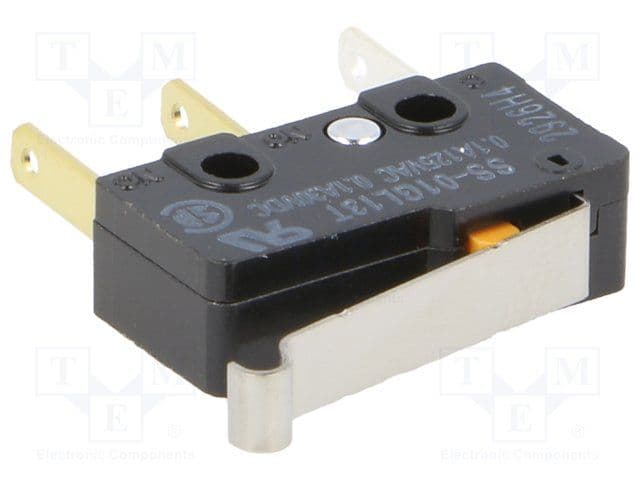

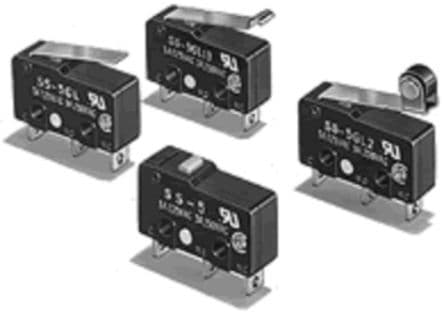

Product Images
