Subminiature basic switch featuring a roller lever actuator and SPDT throw configuration. Rated for 100mA at 125VAC and 30VDC, with gold contact material for reliable performance. Offers a mechanical life of 30,000,000 cycles and an electrical life of 200,000 cycles. Designed for chassis mounting with screw terminals and quick connect termination, operating within a temperature range of -25°C to 85°C. IP40 rated and RoHS compliant.
Package100
Current Rating100mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-01GL2-FT technical specifications.
General
Actuator Type
ROLLER LEVER
Package/Case
100
Contact Current Rating
100mA
Contact Material
Gold
Current Rating
100mA
Electrical Life
200000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mechanical Life
30000000Cycles
Mount
Chassis Mount, Screw
Operating Force
0.16N
Orientation
Straight
Package Quantity
500
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SS-01GL2-FT Datasheet
Download the complete datasheet for Omron SS-01GL2-FT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

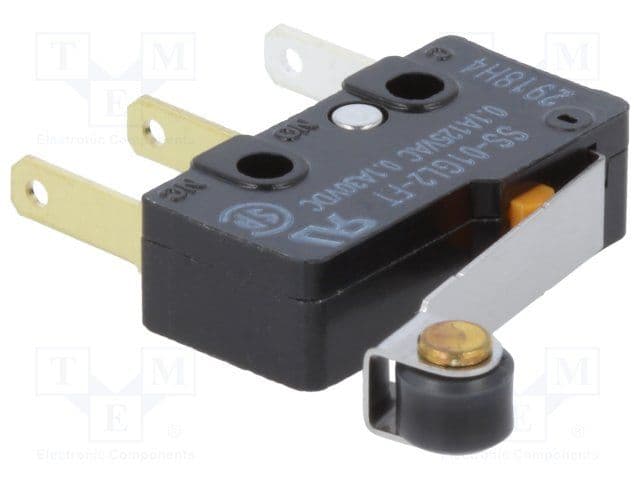

Product Images
