Current Rating100mA
MountingThrough Hole, PCB, Screw, Solder
Quick Jump:
Technical Specifications
Omron SS-01GLPB technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Electrical Life
200000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mechanical Life
1000000Cycles
Mount
Through Hole, PCB, Screw, Solder
Number of Poles
1
Operating Force
0.5N
Orientation
Straight
Package Quantity
100
Ratings
IP40
RoHS Compliant
Yes
Series
SS-P
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SS-01GLPB Datasheet
Download the complete datasheet for Omron SS-01GLPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

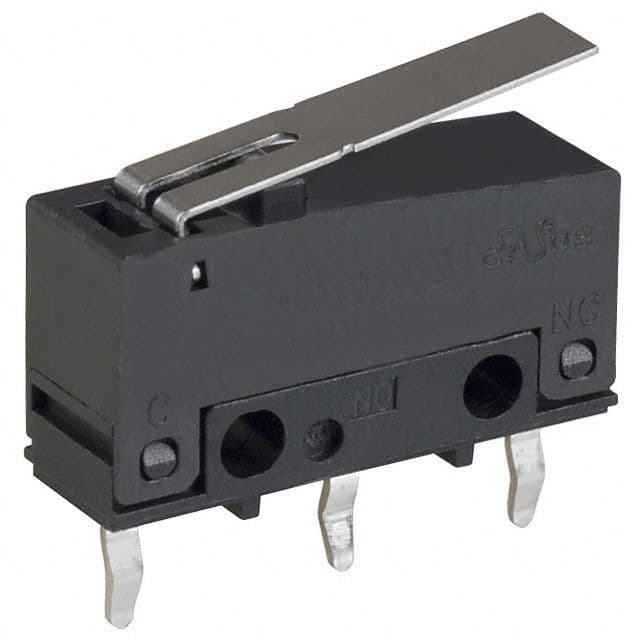

Product Images
