SPDT/SPST basic switch featuring a roller lever actuator and solder terminals. Rated for 10.1A contact current and 4A current, with a maximum AC voltage rating of 250V and DC voltage rating of 30V. Offers 500,000 electrical cycles and 10,000,000 mechanical cycles. Operating force is 0.49N, with differential travel of 0.04 inches and overtravel of 0.039 inches. Suitable for panel, chassis mount, screw, and solder mounting, with an operating temperature range of -25°C to 85°C.
Current Rating4A
MountingPanel, Chassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Omron SS-10GL2 technical specifications.
General
Actuator Type
ROLLER LEVER
Contact Current Rating
10.1A
Contact Material
Silver
Current Rating
4A
Differential Travel
0.04inch
Electrical Life
50000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
14V
Mount
Panel, Chassis Mount, Screw, Solder
Operating Force
0.49N
Operating Position
0.345inch
Orientation
Straight
Overtravel
0.039inch
Package Quantity
100
Packaging
Tray
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT, SPST
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SS-10GL2 Datasheet
Download the complete datasheet for Omron SS-10GL2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

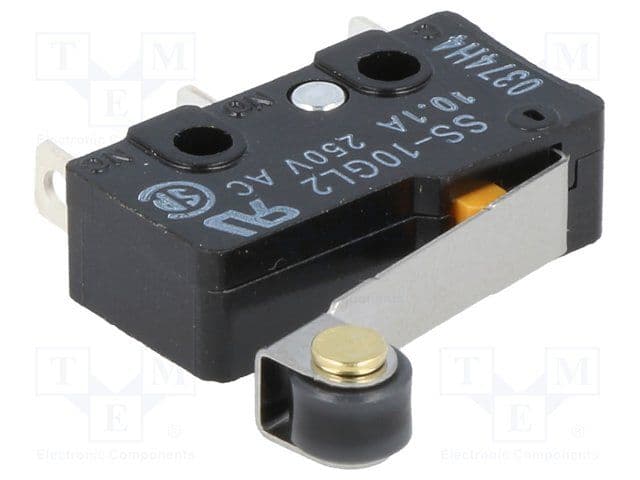

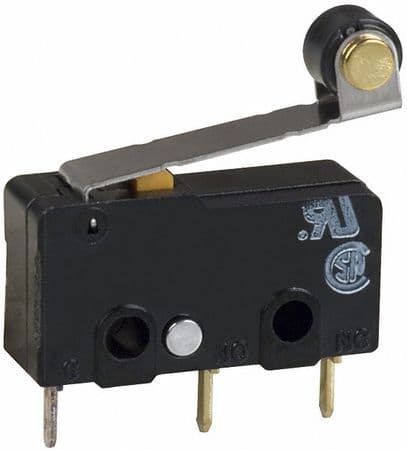

Product Images
