SPDT snap action switch featuring a 10.1A current rating at 250VAC and 14VDC. Equipped with a roller lever actuator and quick connect termination, this switch offers a 500,000-cycle electrical life and 10,000,000-cycle mechanical life. Designed for chassis mount with screw fastening, it operates within a temperature range of -25°C to 85°C and is RoHS compliant.
Current Rating10.1A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-10GL2T technical specifications.
General
Actuator Type
ROLLER LEVER
Contact Current Rating
10.1A
Contact Material
Silver
Current Rating
10.1A
Electrical Life
50000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
14V
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount, Screw
Number of Poles
1
Operating Force
0.49N
Orientation
Straight
Package Quantity
100
Packaging
Tray
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT, SPST
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Omron SS-10GL2T Datasheet
Download the complete datasheet for Omron SS-10GL2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

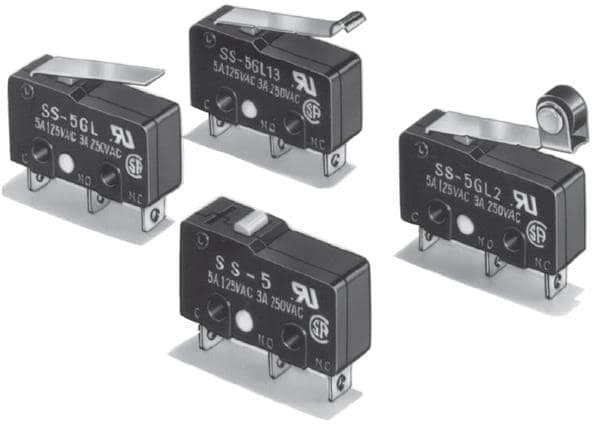

Product Images
