SPDT snap action switch featuring a 10.1A current rating at 250VAC. Equipped with a hinge lever actuator and quick connect termination, this switch offers a mechanical life of 10,000,000 cycles and an electrical life of 50,000 cycles. It operates within a temperature range of -25°C to 85°C and is RoHS compliant. Mounting is via chassis screw, with a straight orientation.
Current Rating10.1A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-10GLT technical specifications.
General
Actuator Type
HINGE LEVER
Contact Current Rating
10.1A
Contact Material
Silver
Current Rating
10.1A
Electrical Life
50000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
14V
Mount
Chassis Mount, Screw
Number of Poles
1
Operating Force
0.49N
Orientation
Straight
Package Quantity
100
Packaging
Tray
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Omron SS-10GLT Datasheet
Download the complete datasheet for Omron SS-10GLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

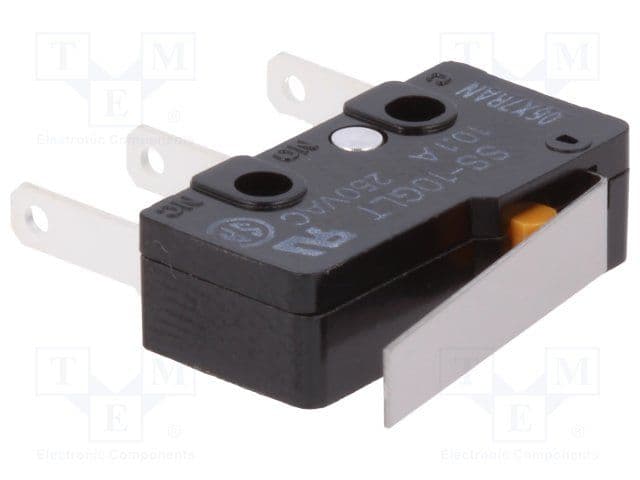

Product Images
