Snap action switch featuring a hinge roller lever actuator. This SPST (Single Pole Single Throw) switch offers a 5A maximum current rating at 125VAC and 30VDC, with a 4A rating. Constructed with silver contacts and a stainless steel, resin, or polyacetal actuator, it boasts an operating force of 0.49N. Designed for through-hole mounting with PC pins, it operates within a temperature range of -25°C to 85°C and provides 200,000 electrical cycles.
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron SS-5GL2D1 technical specifications.
General
Actuator Material
Stainless Steel, Resin, Polyacetal
Contact Material
Silver
Current Rating
4A
Depth
24.4mm
Differential Travel
0.031inch
Electrical Life
200000Cycles
Lead Free
Lead Free
Length
19.8mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
14V
Mechanical Life
30000000Cycles
Mount
Through Hole
Operating Force
0.49N
Operating Position
0.571inch
Orientation
Right Angle
Overtravel
0.047inch
Package Quantity
400
Packaging
Bulk
Ratings
IP40
RoHS Compliant
Yes
Series
SS
Switch Function
On-Mom
Termination
PC Pins
Throw Configuration
SPDT, SPST
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SS-5GL2D1 Datasheet
Download the complete datasheet for Omron SS-5GL2D1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

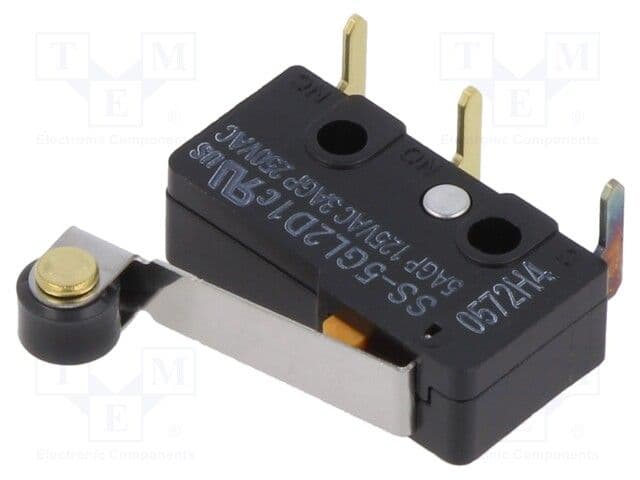

Product Images
