SPDT snap action switch featuring a pin plunger actuator and quick connect termination. Rated for 5A at 125V AC and 14V DC, with silver contacts. Offers 200,000 electrical cycles and 30,000,000 mechanical cycles. Chassis mountable with screw terminals, operating between -25°C and 85°C. RoHS compliant with UL and CSA approvals.
Package125
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SS-5T technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Approvals | UL, CSA |
| Package/Case | 125 |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Current Rating | 5A |
| Depth | 6.4mm |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Length | 19.8mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 14V |
| Mechanical Life | 30000000Cycles |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Operating Force | 1.47N |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Tray |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SS |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| Weight | 1.6g |
Compliance
| RoHS | Compliant |
Datasheet
Omron SS-5T Datasheet
Download the complete datasheet for Omron SS-5T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

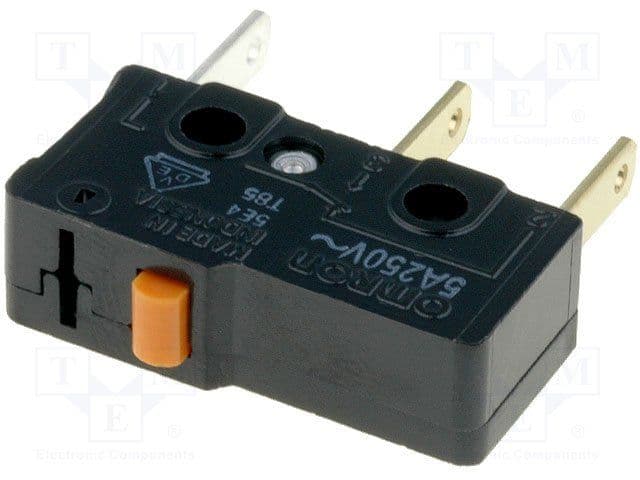

Product Images
