Omron
SSG-01L3H
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever 0.1A 125VAC 30VDC 0.6N Screw Mount Solder Lug
Package100
Current Rating100mA
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron SSG-01L3H technical specifications.
General
Actuator Type
SIMULATED ROLLER LEVER
Package/Case
100
Contact Current Rating
100mA
Contact Material
Gold
Current Rating
100mA
Electrical Life
200000Cycles
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount
Operating Force
61gf
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SSG
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SSG-01L3H Datasheet
Download the complete datasheet for Omron SSG-01L3H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

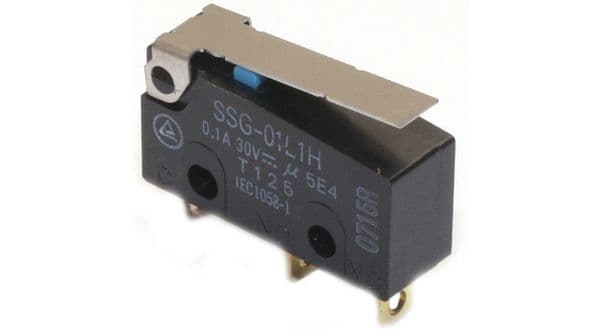

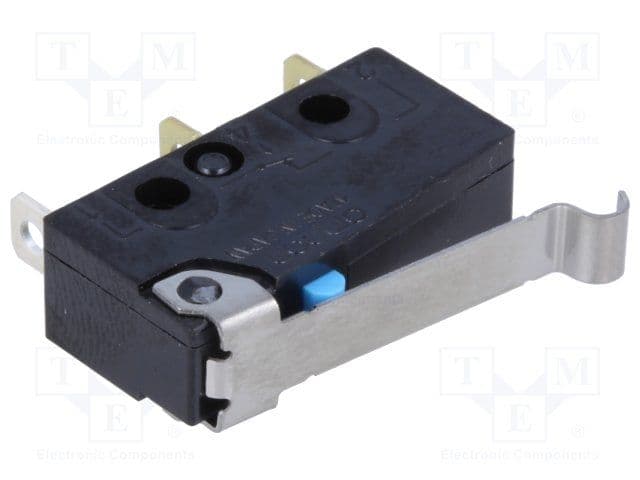

Product Images
