SPDT snap-action switch with pin plunger actuator. Features 100mA contact current rating with gold contacts, 125VAC/30VDC voltage ratings, and 1.5N operating force. Offers 200,000 electrical cycles and 10,000,000 mechanical cycles. Mounts via screw terminals with quick connect termination. Rated IP40 and RoHS compliant, operating between -25°C and 125°C.
Package100
Current Rating100mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SSG-01T technical specifications.
General
| Actuator Type | PIN PLUNGER |
| Package/Case | 100 |
| Contact Current Rating | 100mA |
| Contact Material | Gold |
| Current Rating | 100mA |
| Differential Travel | 0.004inch |
| Electrical Life | 200000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount, Screw |
| Operating Force | 1.5N |
| Operating Position | 0.33inch |
| Orientation | Straight |
| Overtravel | 0.015inch |
| Package Quantity | 100 |
| Packaging | Bulk |
| Pretravel | 0.024inch |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SSG |
| Switch Function | On-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
| Weight | 1.6g |
Compliance
| RoHS | Compliant |
Datasheet
Omron SSG-01T Datasheet
Download the complete datasheet for Omron SSG-01T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

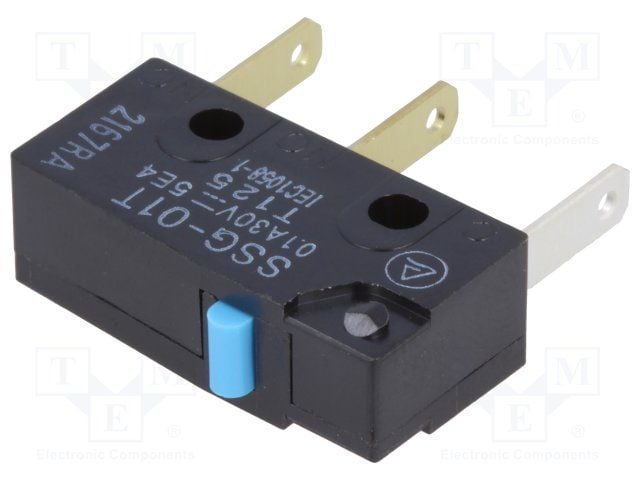

Product Images
