SPDT snap-action switch featuring a hinge lever actuator. Offers 5A current rating at 125VAC and 30VDC, with a 0.6N operating force. Includes quick connect termination and screw mounting for chassis applications. Rated for 200,000 electrical cycles and 10,000,000 mechanical cycles, with an operating temperature range of -25°C to 125°C.
Package125
Current Rating5A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SSG-5L1T technical specifications.
General
Actuator Type
HINGE LEVER
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Differential Travel
0.031inch
Electrical Life
200000Cycles
Max Operating Temperature
125°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
14V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Screw
Operating Force
0.6N
Operating Position
0.345inch
Orientation
Straight
Overtravel
0.04inch
Package Quantity
100
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SSG
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SSG-5L1T Datasheet
Download the complete datasheet for Omron SSG-5L1T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

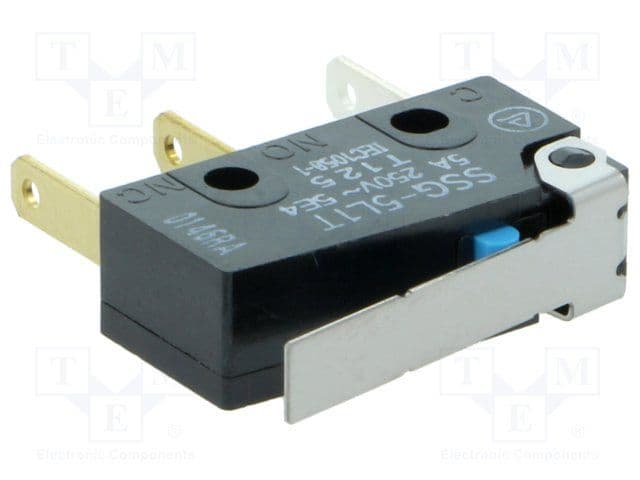

Product Images
