Omron
SSG-5L3P
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever 5A 250VAC 250VDC 0.6N Thru-Hole PC Pins
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron SSG-5L3P technical specifications.
General
Actuator Type
SIMULATED ROLLER LEVER
Contact Current Rating
5A
Contact Material
Silver
Current Rating
5A
Max Operating Temperature
125°C
Min Operating Temperature
-25°C
Mount
Through Hole
Operating Force
0.6N
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
PCB
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Omron SSG-5L3P Datasheet
Download the complete datasheet for Omron SSG-5L3P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

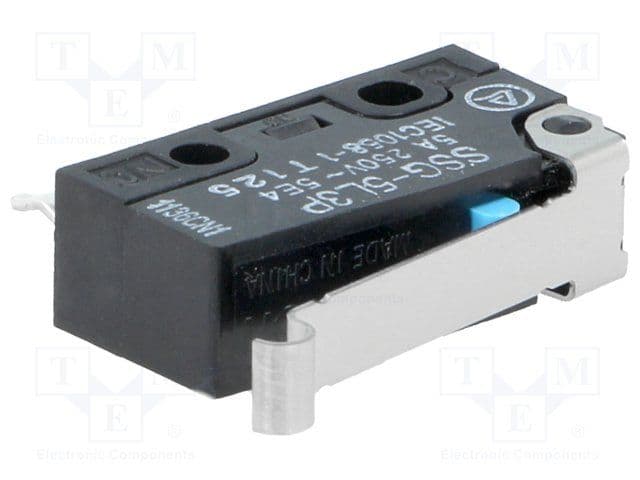

Product Images
