SPDT snap-action switch with a pin plunger actuator, rated for 5A at 250VAC and 30VDC. Features silver contacts, quick connect termination, and screw mounting for chassis applications. Offers a mechanical life of 10,000,000 cycles and an electrical life of 200,000 cycles. Operates within a temperature range of -25°C to 125°C, with an operating force of 0.5N. RoHS compliant and IP40 rated.
Package125
Current Rating4A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Omron SSG-5T-5 technical specifications.
General
Actuator Type
PIN PLUNGER
Package/Case
125
Contact Current Rating
5A
Contact Material
Silver
Current Rating
4A
Differential Travel
0.004inch
Electrical Life
200000Cycles
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Chassis Mount, Screw
Operating Force
0.5N
Operating Position
0.33inch
Overtravel
0.015inch
Packaging
Bulk
Pretravel
0.024inch
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SSG
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Omron SSG-5T-5 Datasheet
Download the complete datasheet for Omron SSG-5T-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

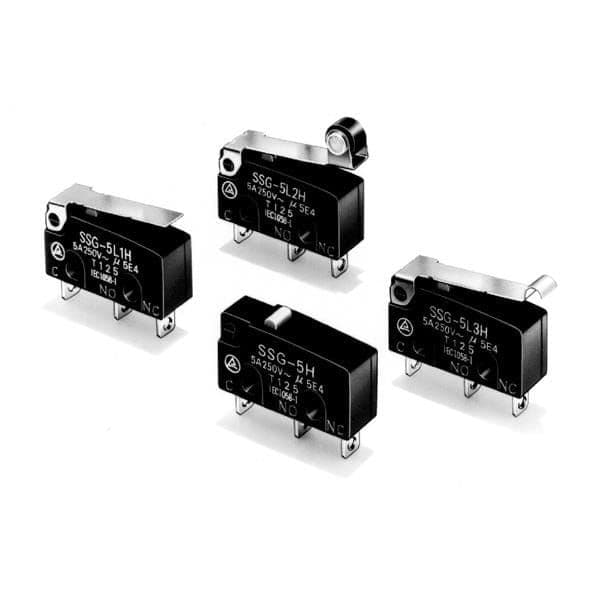

Product Images
